PIGTAILS

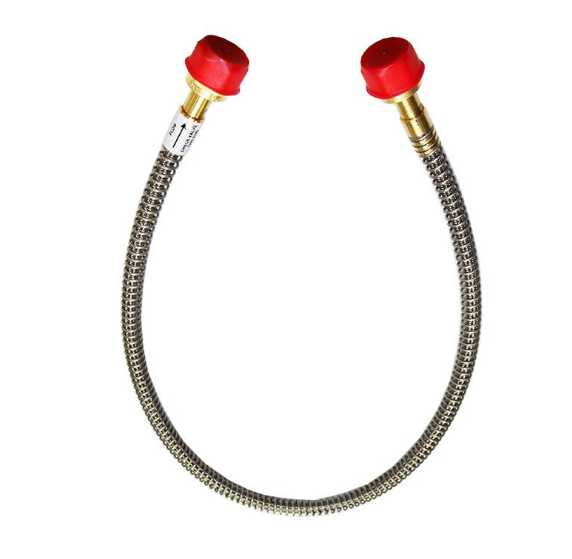

Stainless pigtail with coil guard.

General Features

• Burst pressure rating at room temperature: 12,000 psig
• Maximum 3000 psig working pressure on tubing
• All pigtails 100% tested before shipping and labelled for gas service and pressure rating
• Standard length 36" (3')
• Includes a sticker that indicates the direction of the flow
• The pigtails include a stainless steel coil guard

General Features

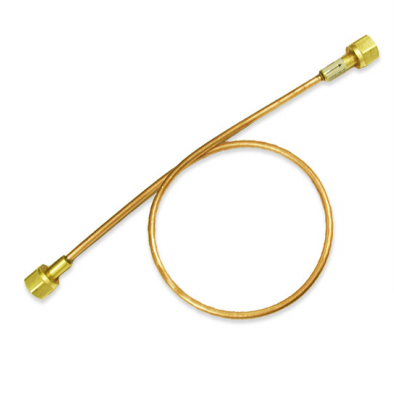

• The Amico copper pigtails shall have a 5/16" x 0.065" wall thickness, copper tube. The Amico copper pigtails shall come with a check valve equipped to one of the ends.
• Note: Burst pressure ratings for pigtails are determined at room temperature with the hose in a straight line. A safety factor of 4:1 or 5:1 should be used for normal applications. Impulse and shock pressure applications may require a higher safety factor.
• Note: Do not apply heat to pigtails.
• All cylinder connections machined to CGA specifications for applicable gases.
• Burst pressure rating at room temperature: 12,000 psig
• Maximum 3000 psig working pressure on tubing
• All pigtails 100% tested before shipping and labelled for gas service and pressure rating
• Standard length 36" (3')
• Includes a sticker that indicates the direction of the flow
