COMBINATION ALARMS

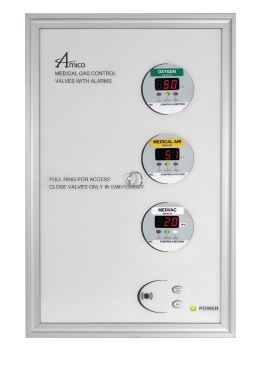

Alarm Valve Combo Unit
With this product’s highly innovative 2 in 1 design, we have combined our first-class Area Alarm with our Valve Box, in one affordable package. The ability to install sensors directly inside the Valve Box eliminates the need for prolonged, complex maintenance, as well as the search for absent sensors. Amico’s Alarm Valve Box Combination Unit is built to offer users years of proficient service. Previous concerns regarding convenience, space, maintenance and accessibility become uncertainties of the past, with the ground-breaking Alarm Valve Combo Unit.
General Features
- 2 in 1 design combines the Area Alarm and Zone Valve Box to compensate for space restrictions
- True digital, illuminated LED display is readable even in poor lighting conditions
- High/low alarm set-points are field adjustable for each gas service
- Repeat alarm is adjustable from 1 to 60 minutes or off
- Gas-specific sensor with DISS nut and nipple
- Alarm buzzer in excess of 90 decibels
- Each module is marked with an approved medical gas identification label
- Pre-mounted pull-out ring allows for ease of maintenance
- Individual microprocessor for each display and sensor module; digital sensor is mounted locally
- Dry contacts for remote monitoring of the high and low alarm

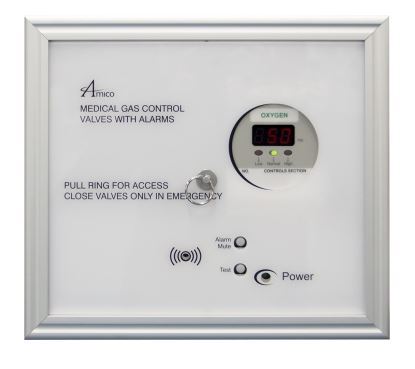

Single Alarm Valve Combo Unit
With this product’s highly innovative 2 in 1 design, we have combined our first-class Area Alarm with our Single Valve Box, acommodating both in one space providing an aesthetically pleasant, affordable package. The ability to install sensors directly inside the Single Valve Box eliminates the need for prolonged, complex maintenance, as well as the search for absent sensors. Amico’s Single Valve Alarm Combination Unit is built to offer users years of proficient service. Previous concerns regarding convenience, space, maintenance and accessibility become uncertainties of the past, with the ground-breaking, Single Alarm Valve Combo Unit.
General Features
- 2 in 1 design combines the Area Alarm and Zone Valve Box, to allow for space restrictions
- True digital, illuminated LED display is readable even in poor lighting conditions
- High/low alarm set-points are field adjustable for each gas service
- Repeat alarm, adjustable from 1 to 60 minutes or off
- Gas-specific sensor with DISS nut and nipple
- Alarm buzzer in excess of 90 decibels
- Each module marked with an approved medical gas identification label
- Pre-mounted pull-out ring allows for ease of maintenance
- Individual microprocessor for each display and sensor module digital sensor is mounted locally
- Dry contacts for remote monitoring of the high and low alarm

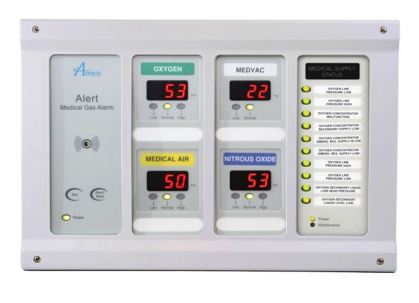

Combination Alarm Systems - Compact/Master
Both the Compact and Master Alarm systems shall be an Amico Alert-2 Series, complete with a five-year warranty.
General Features
- Individual Microprocessor for each display and sensor module
- Digital sensors can be mounted locally or remotely utilizing a #22 gauge stranded, shielded, twisted pair cable ONLY
- True digital LED read-out with RED alarm and GREEN NORMAL trend indication for each service
- Illuminated LED display readable even in poor lighting conditions
- Self-diagnostic and error message display for ease of maintenance
- HIGH/LOW Alarm set-points are field adjustable for each individual gas service
- Alarm buzzer in excess of 90 decibels
- A green LED indicator for normal and a RED LED indicator for abnormal conditions
- Maintenance mode for ease of troubleshooting
- Self-diagnostic circuitry for added reliability
- Master modules can be upgraded in the field to interface to a building management system or slave master alarm
- Last alarm flashes, acknowledged alarm shows continuous RED signal
- Repeat alarm adjustable from 1, 12, 24 hours or off
- Dry contacts are used between master module and source equipment for remote monitoring of high and low alarms
- Sensors housed in a solid, tamper-proof enclosure to act as a barrier against any interference
- Gas specific sensor with DISS nut and nipple
